Category: Fire Fighting Aerial Platform

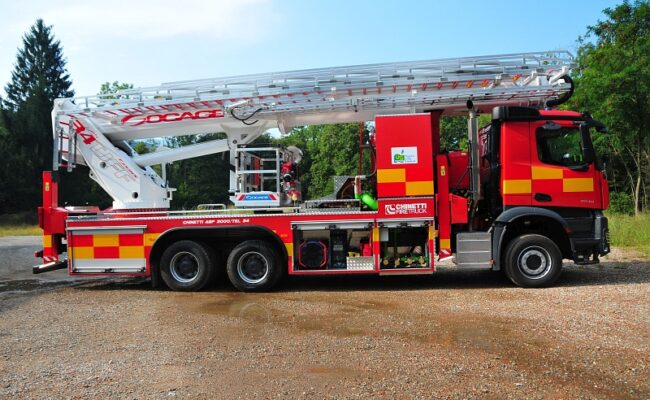

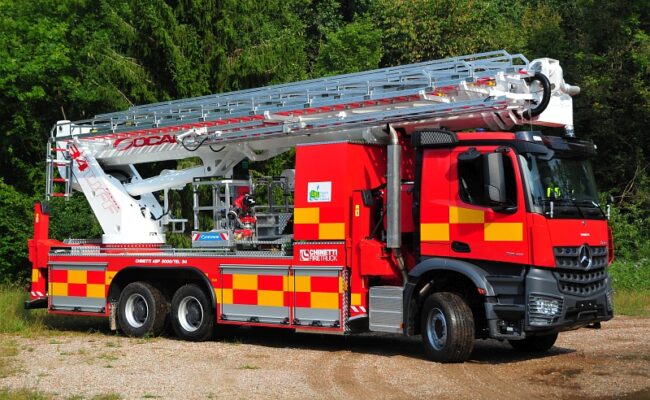

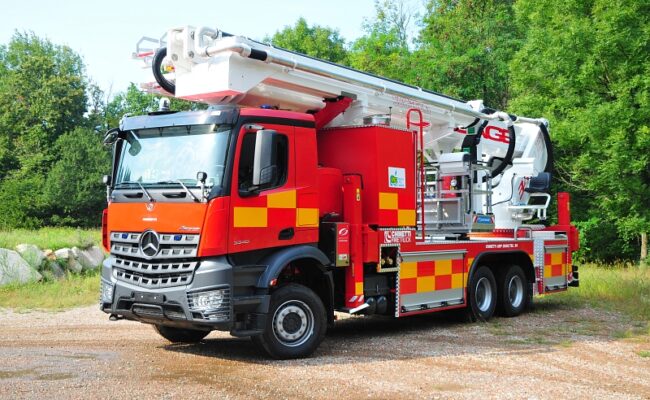

MODEL: ABP 3000 / TEL34
Chassis: Mercedes-Benz Actros 3340 6x4 - 394 Hp - GVWR: 33'000 kg - Automated gear-box Power-Shift 3.
Cabin: 2 doors - 3 seats - Air conditioning

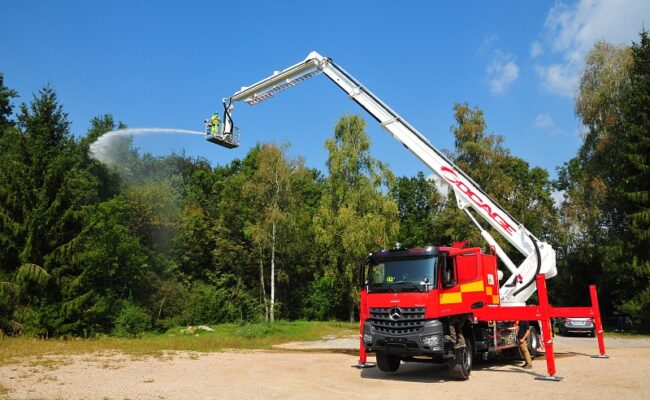

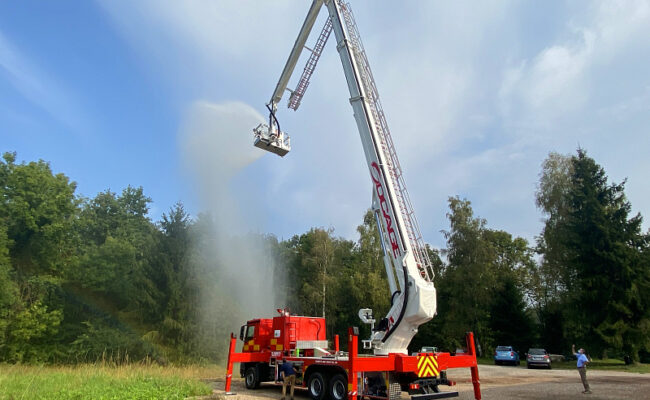

Aerial Platforms:
- Max. working height 34,0 m
- Max. outreach 22,5 m (400 kg load in the basket) / 25,0 m (150 kg load in the basket)
- Max downreach: -5,0 m
- Controls: wireless remote control for outriggers - Basket and turret control stations for boom & basket operation.
- Rescue ladder at boom side: provided
- Max. Basket load: 400 kg (monitor off) / 200 kg (monitor on)
Water tank: 3'000 lt from Polypropylene (available also from AISI 316L or GRP)
Water pump: CHINETTI 2T-5012 - 5'000 lt/min @ 10 bar - Bronze body and impellers.
Basket monitor: AKRON Stream Master, style 3782 - 950 - 3'800 l/min @ 5.5 bar - Throwing distance: 80m
Side lockers: 2 on each side - anodized light alloy shutters - Side illumination scene lights available on request.
Other features:
- Reverse camera or 360° Back-eye system
- Dash-cam with recoring HDD
- Emergency engine shut-down system in case of explosive athmosphere
Fire Fighting and Rescue Equipment: on request
S/N: 7341
Presentation Video:
