Category: Fire Fighting Aerial Platform

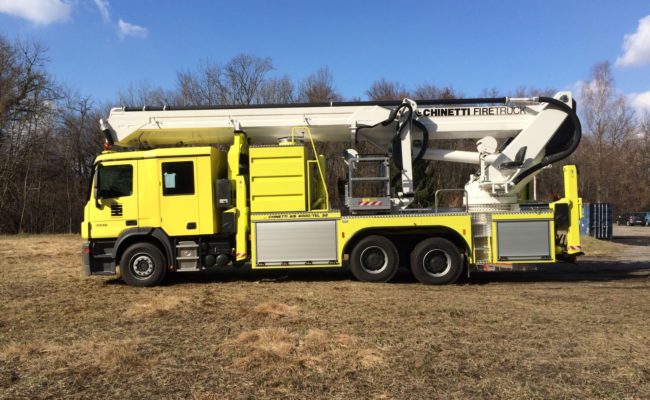

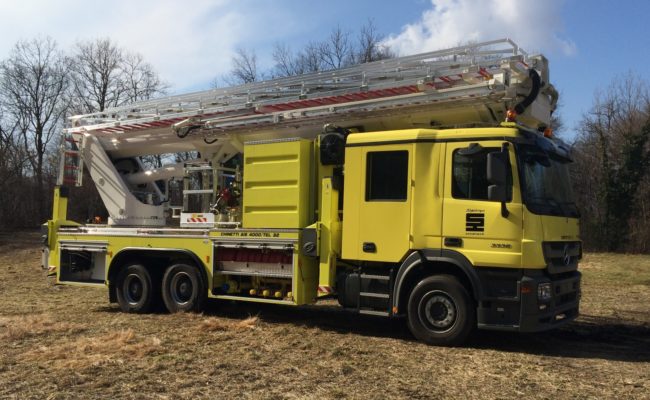

MODEL: AIS 4000 / TEL35
Chassis: Mercedes-Benz Actros 3336 6x4 - 360 Hp - GVWR: 33'000 kg - Automatic gear-box Power-Shift.
Cabin: 4 doors - 6 seats - Rear seats can be provided with SCBA holders integrated in the back rest, on request.

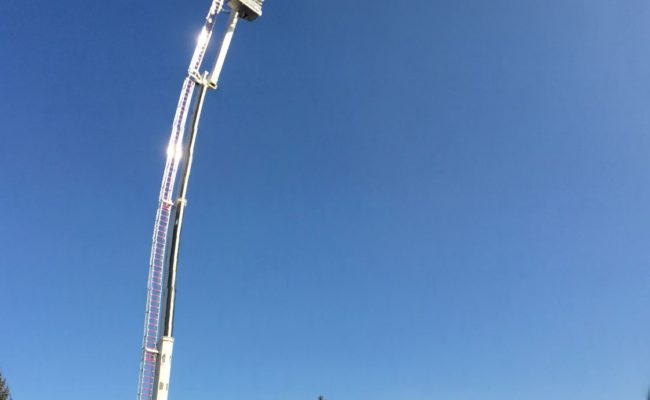

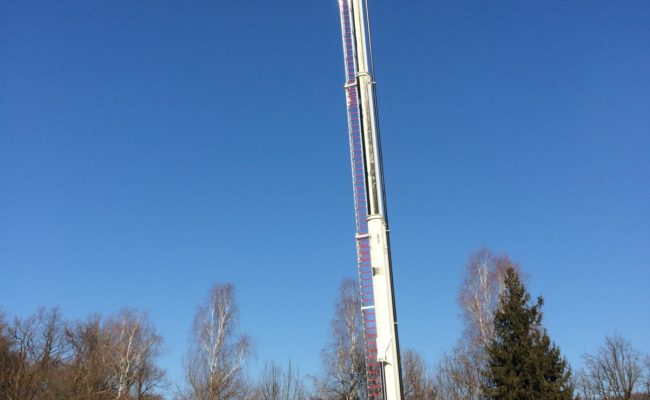

Aerial Platforms:
Max. working height 35,0 m
Max. outreach 22,5 m (400 kg load in the basket) / 25,0 m (150 kg load in the basket)
Max downreach: -5,0 m
Rescue ladder at boom side: provided
Max. Basket load: 400 kg (monitor off) / 200 kg (monitor on)
Foam tank: 5'000 lt from Polypropylene (available also from AISI 316L or GRP)
Water pump: GODIVA P1B+6010 - 5'000 lt/min @ 12 bar - Bronze body and impeller.
Foam pump: CHINETTI PSCH 500 - 500 lt/min @ 18 bar - Bronze made.

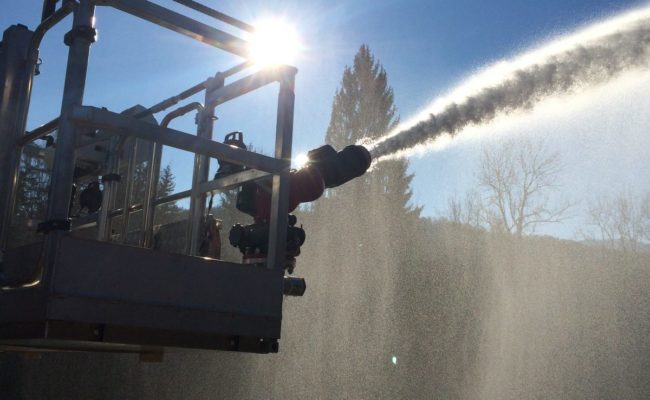

Basket monitor: AKRON Stream Master, 5'000 l/min @ 5.5 bar
Foam mixing system: Balanced pressure type with centralized foam injection. It can work with water at the pump inlet from hydrants or open source.
Side lockers: 2 on each side - anodized light alloy shutters - Side illumination scene lights available on request.
Fire Fighting and Rescue Equipment: on request
S/N: 7175
